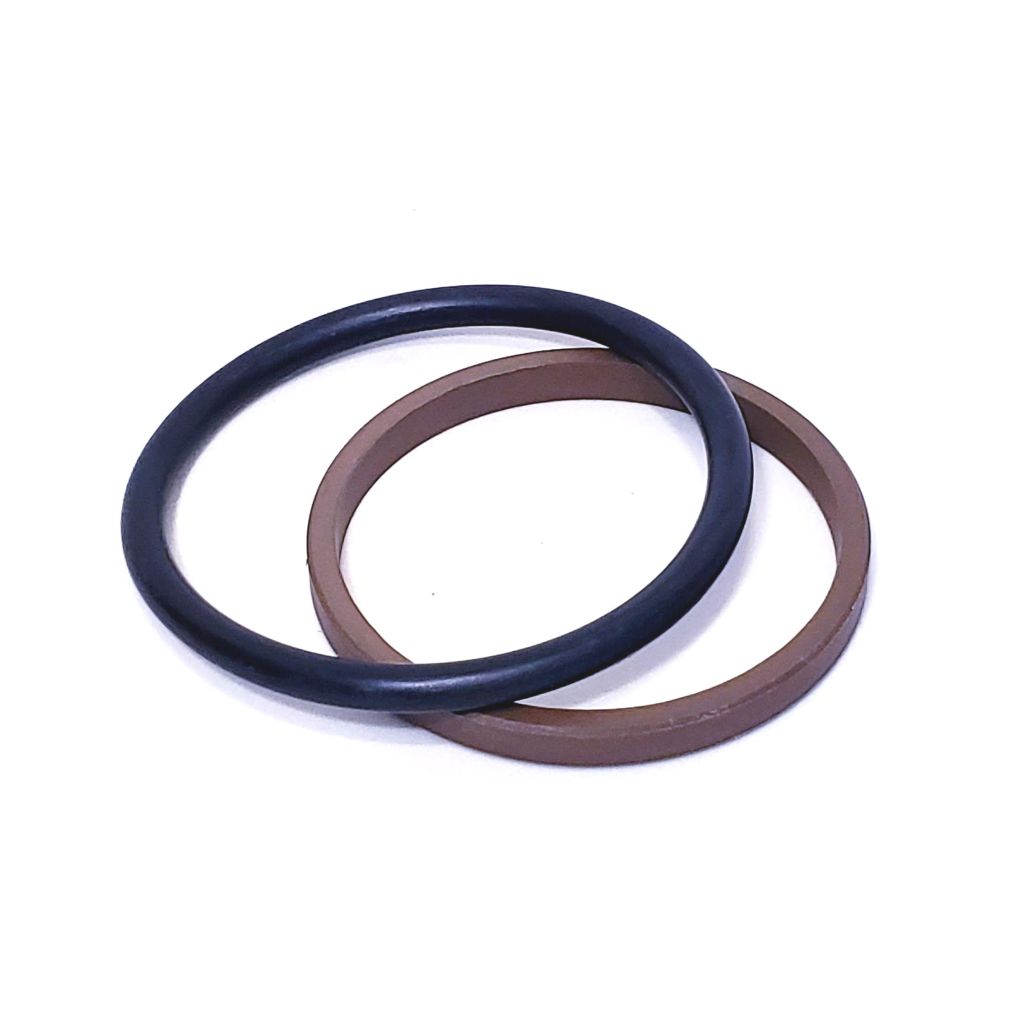

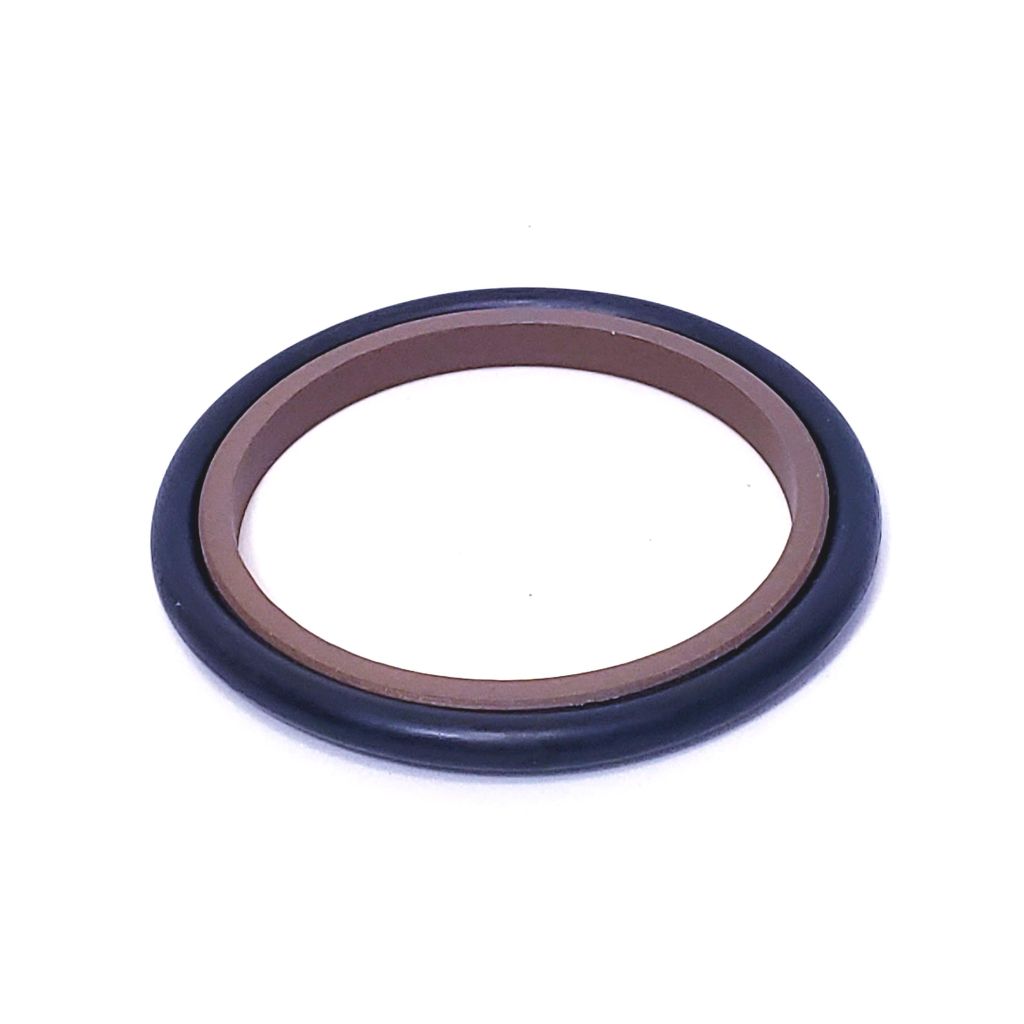

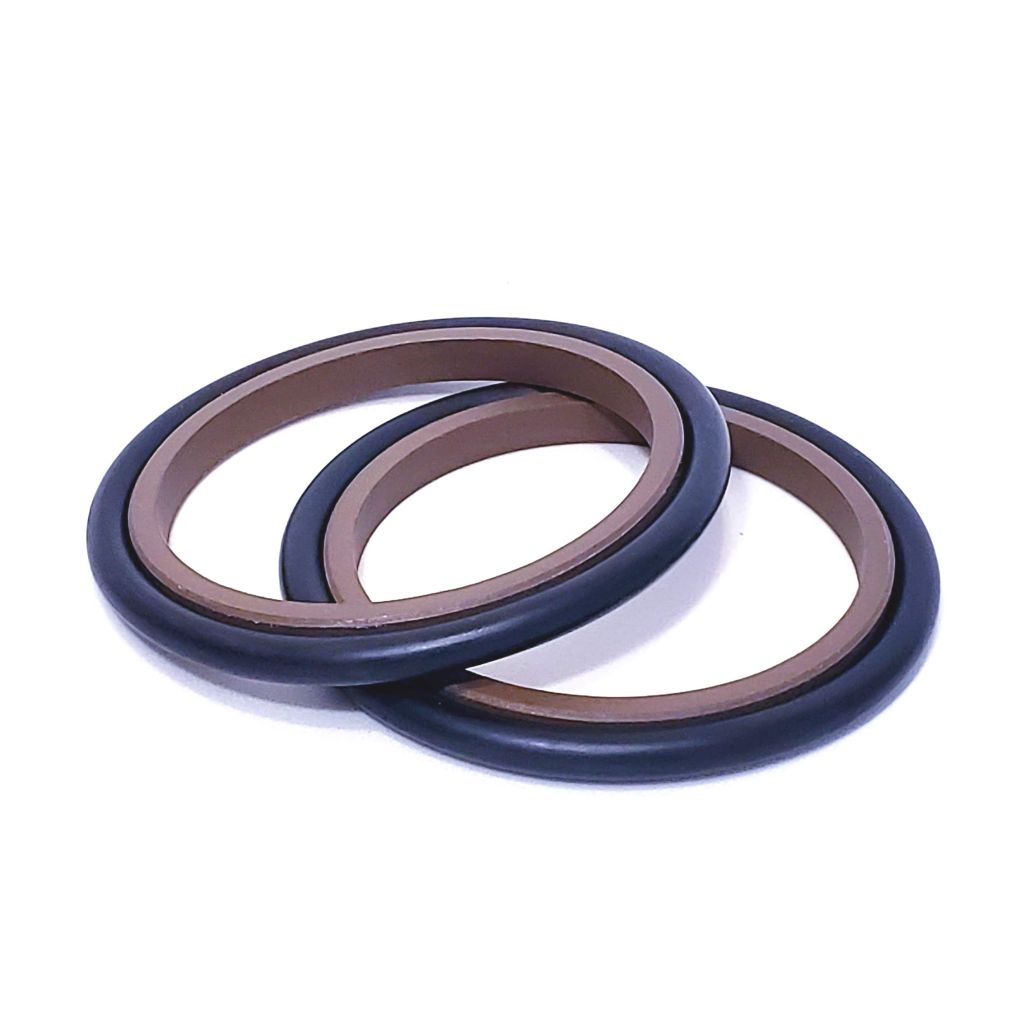

Anel de PTFE+BRONZE (TEFLON + BRONZE) com um anel Oring utilizado na vedação da haste de cilindros hidráulicos, o anel de borracha pode ser em NBR (Normal) ou FKM (Especial)

MaterialPTFE+BR+NBR ou PTFE+BR+FKM
Temperatura-30 a 90ºC P/ NBR
-40 a 200ºC P/ FKM
Velocidade<5M/S

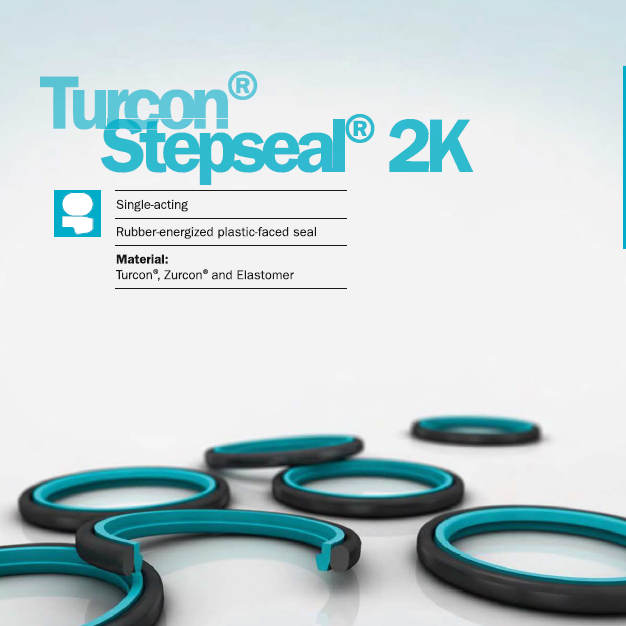

Catálogo – Clique na imagem abaixo para abrir o catálogo Trelleborg de DH – RSK

Modelos (Interno x Altura)

CODIGODESCRICAOMATERIAL
DH08X2TEFLON P/ HASTE 8 X 2,2 NBR+PTFE+BRONZE
DH12X2TEFLON P/ HASTE 12 X 2NBR+PTFE+BRONZE
DH16X2TEFLON P/ HASTE 16 X 2 NBR+PTFE+BRONZE
DH16X3TEFLON P/ HASTE 16 X 3NBR+PTFE+BRONZE
DH18X2TEFLON P/ HASTE 18 X 2 NBR+PTFE+BRONZE
DH18X3TEFLON P/ HASTE 18 X 3,2NBR+PTFE+BRONZE
DH19X4TEFLON P/ HASTE 19 X 4 NBR+PTFE+BRONZE
DH200X8TEFLON P/ HASTE 200 X 8,1 NBR+PTFE+BRONZE
DH20X3TEFLON P/ HASTE 20 X 3NBR+PTFE+BRONZE
DH20X4TEFLON P/ HASTE 20 X 4,2NBR+PTFE+BRONZE
DH22X3TEFLON P/ HASTE 22 X 3,2 NBR+PTFE+BRONZE
DH22X4TEFLON P/ HASTE 22 X 4,2 NBR+PTFE+BRONZE
DH240X8TEFLON P/ HASTE 240 X 8,1NBR+PTFE+BRONZE
DH25X3TEFLON P/ HASTE 25 X 3NBR+PTFE+BRONZE
DH25X4TEFLON P/ HASTE 25 X 4,2NBR+PTFE+BRONZE
DH28X3TEFLON P/ HASTE 28 X 3,2 NBR+PTFE+BRONZE
DH28X4TEFLON P/ HASTE 28 X 4,2NBR+PTFE+BRONZE
DH30X3TEFLON P/ HASTE 30 X 3 NBR+PTFE+BRONZE
DH30X4TEFLON P/ HASTE 30 X 4,2NBR+PTFE+BRONZE
DH32X4TEFLON P/ HASTE 32 X 4,2 NBR+PTFE+BRONZE
DH35X3TEFLON P/ HASTE 35 X 3NBR+PTFE+BRONZE
DH35X4TEFLON P/ HASTE 35 X 4,2NBR+PTFE+BRONZE
DH360X8TEFLON P/ HASTE 360 X 8NBR+PTFE+BRONZE
DH36X3TEFLON P/ HASTE 36 X 3NBR+PTFE+BRONZE
DH36X4TEFLON P/ HASTE 36 X 4,2 NBR+PTFE+BRONZE
DH36X6TEFLON P/ HASTE 36 X 6,3 NBR+PTFE+BRONZE
DH38X3TEFLON P/ HASTE 38 X 3NBR+PTFE+BRONZE
DH38X4TEFLON P/ HASTE 38 X 4 NBR+PTFE+BRONZE
DH38X6TEFLON P/ HASTE 38 X 6,3 NBR+PTFE+BRONZE
DH40X4TEFLON P/ HASTE 40 X 4 NBR+PTFE+BRONZE
DH40X6TEFLON P/ HASTE 40 X 6,3 NBR+PTFE+BRONZE
DH42X6TEFLON P/ HASTE 42 X 6,3 NBR+PTFE+BRONZE
DH45X3TEFLON P/ HASTE 45 X 3 NBR+PTFE+BRONZE
DH45X4TEFLON P/ HASTE 45  X 4NBR+PTFE+BRONZE
DH45X6TEFLON P/ HASTE 45 X 6,3NBR+PTFE+BRONZE
DH50,8X4TEFLON P/ HASTE 50,8 X 4 NBR+PTFE+BRONZE
DH50X4TEFLON P/ HASTE 50 X 4,2  NBR+PTFE+BRONZE
DH50X6TEFLON P/ HASTE 50 X 6,3NBR+PTFE+BRONZE
DH55X4TEFLON P/ HASTE 55 X 4 NBR+PTFE+BRONZE
DH55X6TEFLON P/ HASTE 55 X 6,3 NBR+PTFE+BRONZE
DH56X3TEFLON P/ HASTE 56 X 3 NBR+PTFE+BRONZE
DH56X4TEFLON P/ HASTE 56 X 4,2NBR+PTFE+BRONZE
DH56X6TEFLON P/ HASTE 56 X 6,3  NBR+PTFE+BRONZE
DH60X4TEFLON P/ HASTE 60 X 4 NBR+PTFE+BRONZE
DH60X6TEFLON P/ HASTE 60 X 6,3 NBR+PTFE+BRONZE
DH63X4TEFLON P/ HASTE 63,50 X 4NBR+PTFE+BRONZE
DH63X6TEFLON P/ HASTE 63 X 6,3 NBR+PTFE+BRONZE
DH65X6TEFLON P/ HASTE 65 X  6,3 NBR+PTFE+BRONZE
DH70X4TEFLON P/ HASTE 70 X 4,2 NBR+PTFE+BRONZE
DH70X6TEFLON P/ HASTE 70 X 6,3 NBR+PTFE+BRONZE
DH75X4TEFLON P/ HASTE 75 X 4,2 NBR+PTFE+BRONZE
DH75X6TEFLON P/ HASTE 75  X 6,3 NBR+PTFE+BRONZE
DH80,8X6TEFLON P/ HASTE 50,8 X 6,3NBR+PTFE+BRONZE
DH80X4TEFLON P/ HASTE 80 X 4NBR+PTFE+BRONZE
DH80X6TEFLON P/ HASTE 80 X 6,3 NBR+PTFE+BRONZE
DH85X6TEFLON P/ HASTE 85 X 6,3 NBR+PTFE+BRONZE
DH85X8TEFLON P/ HASTE 85 X 8,1 NBR+PTFE+BRONZE
DH90X4TEFLON P/ HASTE 90 X 4,2 NBR+PTFE+BRONZE
DH90X6TEFLON P/ HASTE 90  X 6,3 NBR+PTFE+BRONZE
DH90X8TEFLON P/ HASTE 90 X 8 NBR+PTFE+BRONZE
DH95X6TEFLON P/ HASTE 95 X 6,3 NBR+PTFE+BRONZE
DH95X8TEFLON P/ HASTE 95 X 8,1NBR+PTFE+BRONZE
DH100X6TEFLON P/ HASTE 100 X 6,3NBR+PTFE+BRONZE
DH100X8TEFLON P/ HASTE 100 X 8 NBR+PTFE+BRONZE
DH105X6TEFLON P/ HASTE 105  X 6,3NBR+PTFE+BRONZE
DH105x8TEFLON P/ HASTE 105 X 8,1NBR+PTFE+BRONZE
DH110X6TEFLON P/ HASTE 110 X 6,3NBR+PTFE+BRONZE
DH110X8TEFLON P/ HASTE 110  X 8,1 NBR+PTFE+BRONZE
DH115X6TEFLON P/ HASTE 115 X 6 NBR+PTFE+BRONZE
DH115X8TEFLON P/ HASTE 115  X 8,1 NBR+PTFE+BRONZE
DH116X6TEFLON P/ HASTE 116 X 6NBR+PTFE+BRONZE
DH120X6TEFLON P/ HASTE 120 X 6,3NBR+PTFE+BRONZE
DH120X8TEFLON P/ HASTE 120 X 8,10NBR+PTFE+BRONZE
DH125X6TEFLON P/ HASTE 125 X 6,3NBR+PTFE+BRONZE
DH125X8TEFLON P/ HASTE 125 X 8,1NBR+PTFE+BRONZE
DH130X6TEFLON P/ HASTE 130 X 6NBR+PTFE+BRONZE
DH130X8TEFLON P/ HASTE 130 X 8,10NBR+PTFE+BRONZE
DH135X6TEFLON P/ HASTE 135 X 6NBR+PTFE+BRONZE
DH140X6TEFLON P/ HASTE 140 X 6,3NBR+PTFE+BRONZE
DH140X8TEFLON P/ HASTE 140 X 8,1NBR+PTFE+BRONZE
DH14X3TEFLON P/ HASTE 14 X 3,2NBR+PTFE+BRONZE
DH150X6TEFLON P/ HASTE 150 X 6,3 NBR+PTFE+BRONZE
DH150X8TEFLON P/ HASTE 150 X 8 NBR+PTFE+BRONZE
DH160X6TEFLON P/ HASTE 160 X 6 NBR+PTFE+BRONZE
DH160X8TEFLON P/ HASTE 160 X 8NBR+PTFE+BRONZE
DH165X6TEFLON P/ HASTE 165 X 6NBR+PTFE+BRONZE
DH170X6TEFLON P/ HASTE 170 X 6,3NBR+PTFE+BRONZE
DH1806TEFLON P/ HASTE 180 X 6,3NBR+PTFE+BRONZE
DH180X8TELFON P/ HASTE 180 X 8,1NBR+PTFE+BRONZE
Entre em contato!
