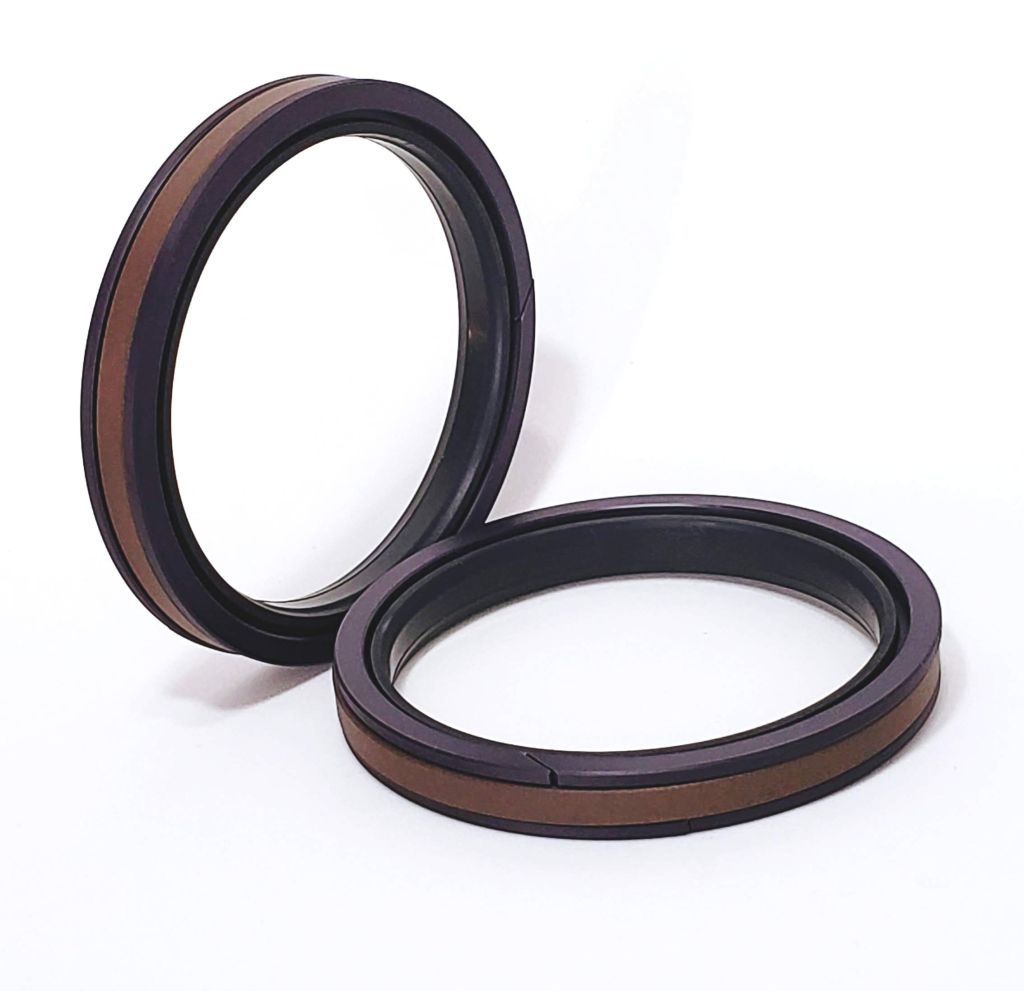

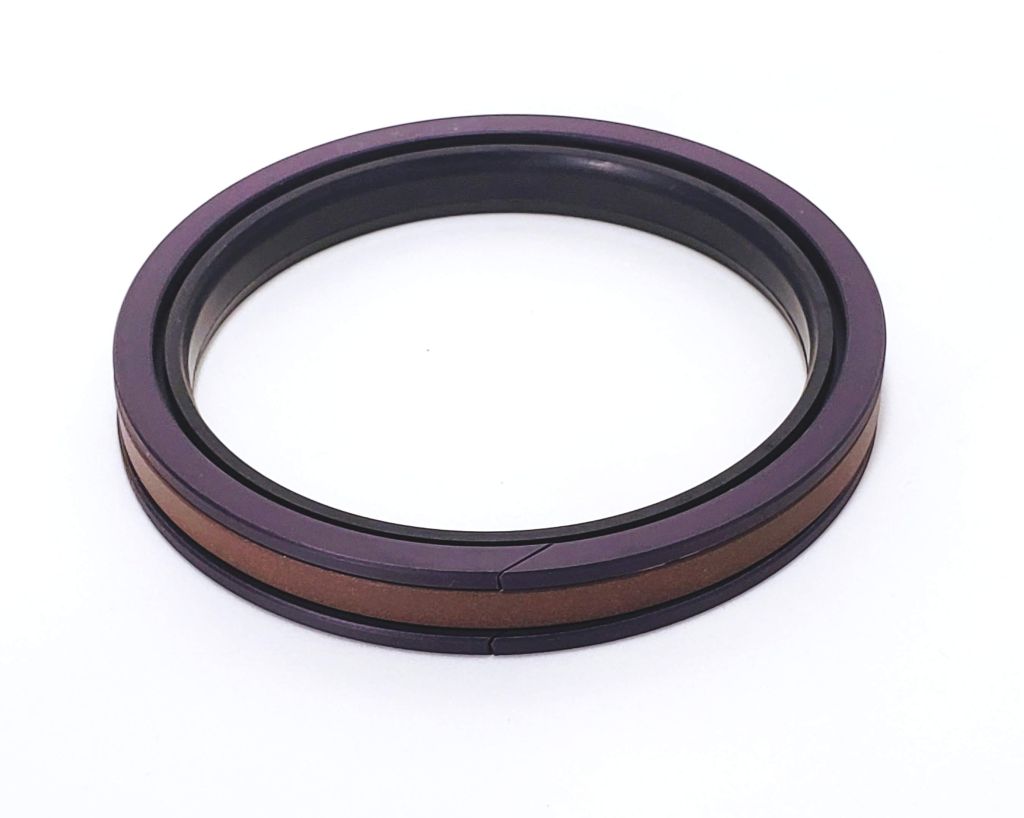

A vedação para embolo de perfil SPFGW é compacta e possui efeito duplo, composta por um anel em Teflon + Bronze (PTFE+Bronze), um anel em borracha (NBR) suportado por dois aneis de apoio em polioximetileno (POM), conhecido como Capped T-Seal ou apenas Capped Seal

MaterialNBR, PTFE+BR e POM
Temperatura-30 a 115ºC
Velocidade<1,5M/S

Modelos

CÓDIGODESCRIÇÃO E MEDIDAS
SPGW100CAPPED T-SEAL 100X 85 X 12
SPGW105CAPPED T-SEAL 105 X 90 X 12
SPGW110CAPPED T-SEAL 110 X 95 X 12
SPGW115CAPPED T-SEAL 115 X 100 X 12
SPGW120CAPPED T-SEAL 120 X 105 X 12
SPGW125CAPPED T-SEAL 125 X 102 X 15,5
SPGW130CAPPED T-SEAL 130 X 107 X 15,50
SPGW135CAPPED T-SEAL 135 X 112 X 15,50
SPGW140CAPPED T-SEAL 140 X 117 X 15,5
SPGW145CAPPED T-SEAL 145 X 15,5
SPGW150CAPPED T-SEAL 150 X 127 X 15,5
SPGW160CAPPED T-SEAL 160 X 137 X 15,5
SPGW165CAPPED T-SEAL 165 X 142 X 15,5
SPGW170CAPPED T-SEAL 170 X 146 X 15,5
SPGW175CAPPED T-SEAL 175 X 152 X 15,50
SPGW185CAPPED T-SEAL 185 X 162 X 15,5
SPGW190CAPPED T-SEAL 190 X 167 X 15,5
SPGW190-12,5CAPPED T-SEAL 190 X 174 X 12,5
SPGW200CAPPED T-SEAL  200 X 177 X 15,5
SPGW220CAPPED T-SEAL 220 X 197 X 15,5
SPGW250CAPPED T-SEAL 250 X 222 X 17
SPGW300CAPPED SEAL 300 X 272 X 17
SPGW60CAPPED T SEAL 60 X 46 X 8,5
SPGW70CAPPED T-SEAL 70 X 55 X 10,5
SPGW75CAPPED T-SEAL 75 X 60 X 10,5
SPGW80CAPPED T-SEAL 80 X 65 X 10,5
SPGW85CAPPED SEAL 85 X 70 X 10,50
SPGW90CAPPED T-SEAL 90 X 75 X 10,50
SPGW95CAPPED T-SEAL 95X 80 X 10,50
